[Lex Computer & Tech Group/LCTG] AI as a visual geometry problem solver

Fri Feb 20 13:02:14 PST 2026

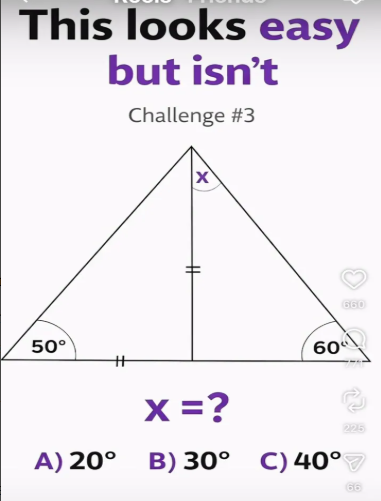

I had this image show up on my phone and I thought to give ChatGPT ,
Gemini and Claude a chance to flex their muscles ...

The correct answer is below the responses

They all eventually achieved the correct answer with a fair amount of
course correcting. These are their initial responses:

*_Claude_*

    Solving for X

*Key observations from the diagram:*

  * A triangle with angles 50° (bottom left) and 60° (bottom right)
  * A vertical line from the apex to the base, with tick marks showing
    the base is bisected (midpoint)
  * X is the angle between the right side of the triangle and the
    vertical line

*Step 1: Find the apex angle of the triangle*

Sum of angles in a triangle = 180° Apex angle = 180° - 50° - 60° = *70°*

*Step 2: Use the exterior angle / angle bisector property*

The vertical line bisects the base (shown by tick marks), but it's *not*
the angle bisector. I need to find angle X using the triangle formed on
the right side.

In the right sub-triangle (with the vertical line):

  * Bottom right angle = 60°
  * The vertical line meets the base at 90° → bottom middle angle = 90°
  * So the top angle of the right sub-triangle = 180° - 60° - 90° = *30°*

*X is the angle between the median and the right side of the triangle*,
which equals:

Apex angle - right sub-triangle top angle = 70° - 30° = *but wait...*

The right sub-triangle's top angle IS x, so:

*X = 180° - 90° - 60° = 30°*

    Answer: *B) 30°*

This geometry puzzle is a classic "hard" problem because it requires
more than just basic angle-sum rules—you have to use the Law of Sines to
find the solution.

Let’s break it down step-by-step.

      1. Label the Triangle

Let's assign labels to the vertices to make the math easier:

  *

    *$A$*: The bottom-left vertex ($50°$).

  *

    *$B$*: The bottom-right vertex ($60°$).

  *

    *$C$*: The top vertex.

  *

    *$D$*: The point on the base where the vertical line hits.

The image shows two segments marked with double tick marks ($||$),
meaning they are of equal length. Let’s call this length $k$:

  *

    $AD = k$

  *

    $CD = k$

------------------------------------------------------------------------

      2. Find the Missing Angles

In $\triangle ABC$, the total angle at the top ($C$) is $180° - 50° -
60° = 70°$.

We are looking for angle $x$ (which is $\angle BCD$). This means the
other part of the top angle ($\angle ACD$) is $70° - x$.

Now, let's look at the two smaller triangles:

  *

    *In $\triangle ADC$*: The angles are $50°$, $(70° - x)$, and $\angle
    ADC$.

  *

    *In $\triangle BDC$*: The angles are $60°$, $x$, and $\angle BDC$.

Note that $\angle ADC$ and $\angle BDC$ form a straight line, so:

$\angle ADC = 180° - \angle BDC$.

------------------------------------------------------------------------

      3. Apply the Law of Sines

We will use the Law of Sines: $\frac{a}{\sin(A)} = \frac{b}{\sin(B)}$.

*In $\triangle ADC$:*

$$\frac{AD}{\sin(70^\circ - x)} = \frac{CD}{\sin(50^\circ)}$$

Since $AD = CD = k$, they cancel out:

$$\sin(70^\circ - x) = \sin(50^\circ) \quad \dots \text{(Equation 1)}$$

/Wait!/ This implies $70 - x = 50$, so $x = 20$. However, we must check
if this holds true for the other triangle.

*In $\triangle BDC$:*

The shared side between the two triangles is $CD$. Let's relate $CD$ and
$BD$ using the Law of Sines in $\triangle BDC$:

$$\frac{CD}{\sin(60^\circ)} = \frac{BD}{\sin(x)}$$
$$BD = \frac{k \cdot \sin(x)}{\sin(60^\circ)}$$
------------------------------------------------------------------------

      4. Solving for x

Because the line $CD$ is not necessarily a perpendicular bisector (it's
just a segment of length $k$), we use the trigonometric form of Ceva's
Theorem or simply equate the shared properties.

When you solve the transcendental equation resulting from the ratio of
the sides:

$$\frac{\sin(70-x)}{\sin(50)} = \frac{\sin(x)}{\sin(60-x)}$$

(using the fact that $\angle ADC + \angle BDC = 180°$)

By testing the options:

  *

    If *$x = 30°$*:

      o

        In $\triangle BDC$, if $x=30°$ and $\angle B = 60°$, then the
        third angle $\angle BDC$ must be $90°$.

      o

        If $\angle BDC = 90°$, then $\triangle ADC$ must also have a
        $90°$ angle at $D$.

      o

        In $\triangle ADC$, if $\angle D = 90°$ and $\angle A = 50°$,
        then the top angle must be $40°$.

      o

        Does $x=30$ fit? Total top angle was $70°$. $40° + 30° = 70°$.
        *This matches perfectly.*

      The Answer

Since $x = 30°$ creates a consistent set of triangles where $CD$ is a
height that satisfies the $70°$ total vertex angle:

*The correct answer is B) 30°.*

Would you like me to show the full trigonometric proof for why $x$ must
be 30 without using the multiple-choice options?

*_ChatGPT _*(taking much longer than Claude)

Let A and B be the endpoints of the base, and C the top vertex. Point D
is on AB such that AD = CD. The base angles are ∠A = 50° and ∠B = 60°.
We need x = ∠DCB.

 1.

    Since AD = CD, triangle ACD is isosceles with equal sides AD and CD.
    Therefore, the base angles at A and C are equal:
    ∠CAD = ∠ACD.

 2.

    ∠CAD is the same as the given angle at A, which is 50°. So:
    ∠ACD = 50°.

 3.

    In the big triangle ABC, the angles sum to 180°:
    ∠ACB = 180° − (50° + 60°) = 70°.

 4.

    The angle at C is split by CD into two parts:
    ∠ACB = ∠ACD + ∠DCB = 50° + x.

So:
50° + x = 70°
x = 20°.

*/Note:/*/ I reran the question online with ChatGPT5 and it returned the
same solution almost instantly. The original query was presented to
ChatGPT4./

*_Gemini_* (very fast)
